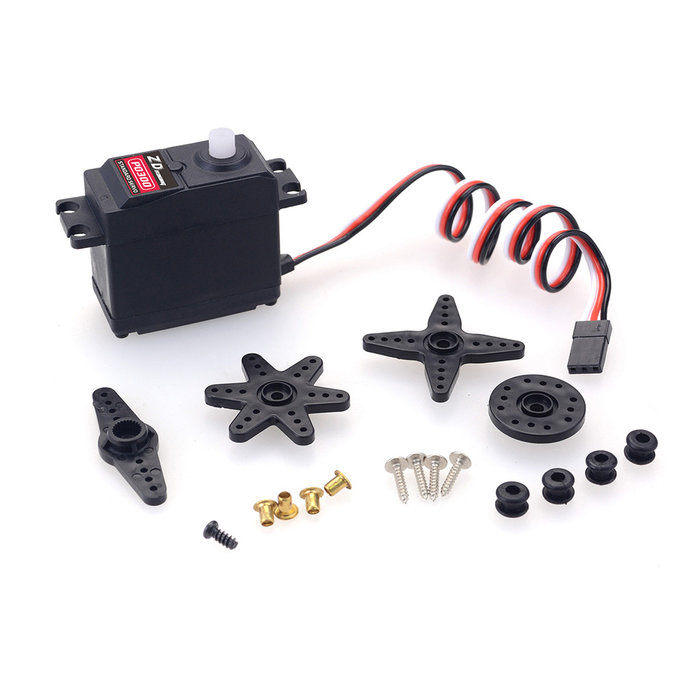

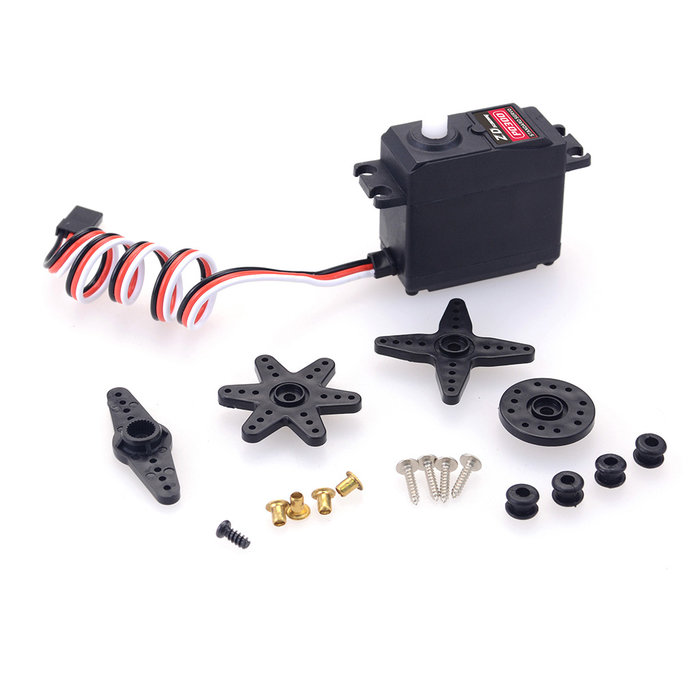

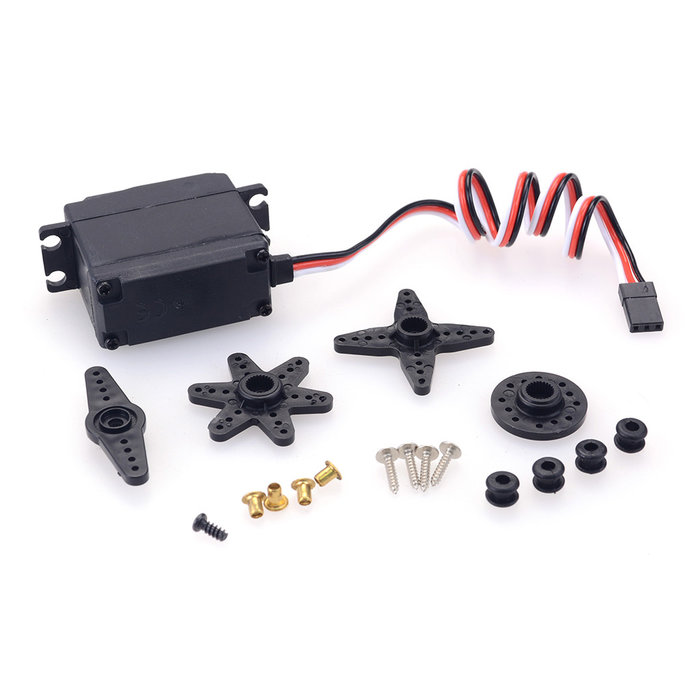

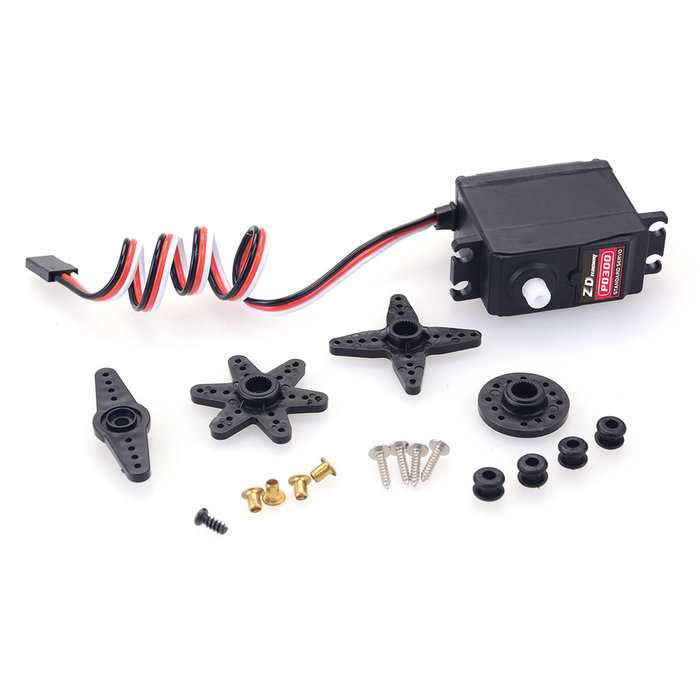

ZD Racing3.5kg Servo (for brushed)
3.5kg Servo (for brushed)
1. Apply Environmental Condition:
2. Standard Test Environment:
3. Appearance Inspection:
|
- Control Specification:
No. | (Item) | (Specification) |
6-1 | Control system | Change the pulse width |
6-2 | Amplifier type | Analog controller |
6-3 | Operating travel | 90°±10°(在1000→2000 μsec) |
6-4 | Left&Right travelling Angle deviation | ≤3° |
6-5 | Centering deviation | ≤1° |
6-6 | Neutral position | 1500 μsec |
6-7 | Dead band width | 7 μsec |
6-8 | Rotating direction | Counter Clockwise(在1500→2000 μsec) |
6-9 | Pulse width range | 800→2200 μsec |
6-10 | Maximum travel | About 145°(在800→2200 μsec) |
